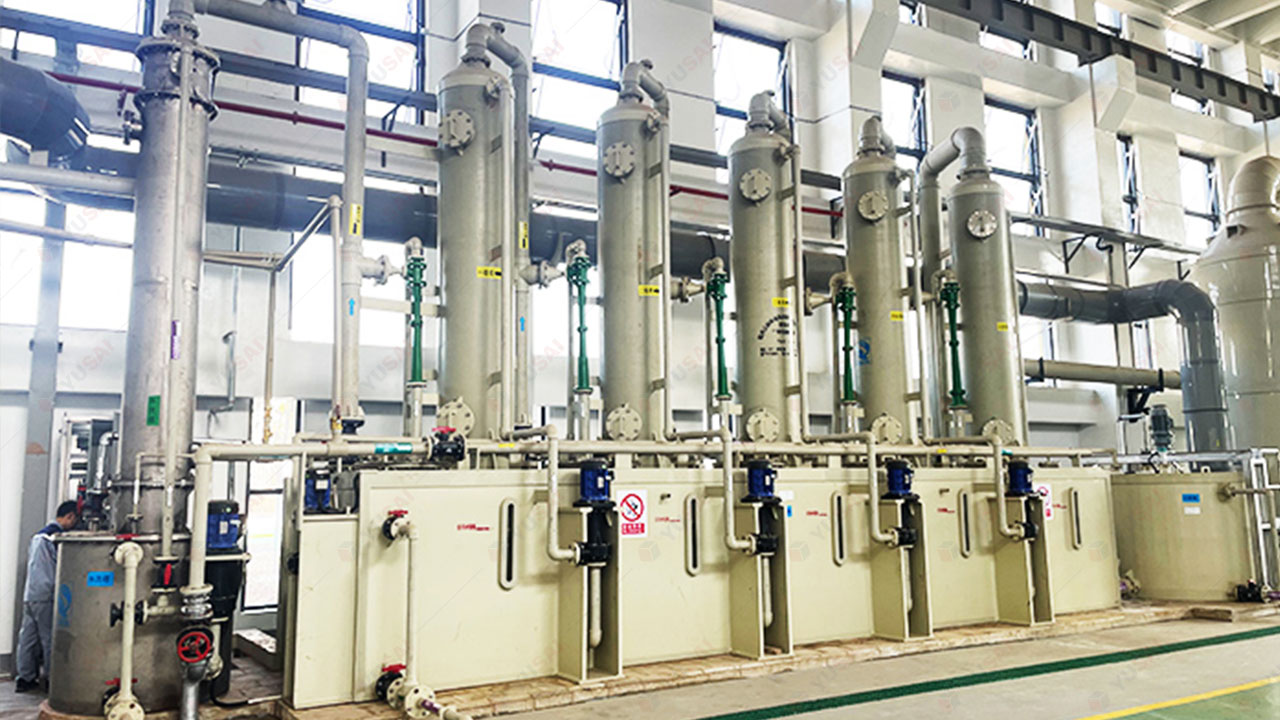

Nitrogen Oxide(NOx )Treatment System

The NOx treatment system is specialized equipment designed for the highly efficient purification of nitrogen oxides (NOx) in industrial exhaust gases, utilizing absorption and reduction technologies.

Application Scenarios: It is suitable for treating NOx-containing exhaust gases in the metallurgical and chemical industries, handling flow rates ranging from hundreds to tens of thousands of cubic meters per hour with varying gas compositions and concentrations. For applications involving extremely high gas volumes, a parallel system configuration can be employed.

Product Description

We provide highly efficient and cost-effective solutions for treating nitrogen oxide (NOx) emissions generated by industries such as non-ferrous metallurgy and chemical manufacturing. Our systems utilize absorption and reduction technologies specifically designed to purify industrial exhaust gases; they achieve absorption efficiencies of up to 99.99% and ensure NOx emission concentrations remain at or below 100 mg/m³. The core equipment is corrosion-resistant and offers a service life of over eight years.

These NOx treatment systems are specialized units that employ absorption and reduction technologies for the efficient purification of nitrogen oxides (NOx) in industrial exhaust. They are suitable for treating NOx-containing exhaust gases across the metallurgical and chemical sectors, handling flow rates ranging from hundreds to tens of thousands of cubic meters per hour with varying gas compositions and concentrations. For applications requiring exceptionally high flow rates, multiple units can be operated in parallel to meet the demand.

Processing Workflow

Key Features

Efficient Purification: Utilizes proprietary chemical absorbents and processes to convert nitrogen oxides in exhaust gas into harmless nitrogen gas or useful salts, achieving low emission levels.

Resource Recovery: Recovers reaction products as chemical raw materials, transforming waste into a resource and reducing operating costs.

Stability and Reliability: Features a high degree of automation and adaptability to various operating conditions, ensuring stable long-term performance and helping clients easily pass environmental compliance inspections.

Primary Reaction Mechanisms

NO + Reducing Agent → N₂↑ + CO₂↑ + H₂O (Catalytic conditions)

NO₂ + Reducing Agent → N₂↑ + CO₂↑ + H₂O (Catalytic conditions)

NO + NO₂ → N₂O₃

N₂O₃ + H₂O → 2HNO₂

HNO₂ + Reducing Agent → N₂↑ + CO₂↑ + H₂O

NOx Treatment System Technical Advantages

1. Primary Reaction Mechanisms

The process generates no polluted wastewater or solid waste; the reaction yields only nitrogen, CO2, and water. With no secondary pollution, it achieves true zero-pollution, zero-emission operation.

2. High Absorption Efficiency and Compliance

Absorption efficiency reaches up to 99.99%, with NOx emission concentrations ≤100 mg/m³.

3. Low Investment and Operating Costs

The process flow is streamlined, with NOx gases fed directly into the treatment unit, resulting in low energy consumption. It features a compact footprint and utilizes a single reducing agent, ensuring low investment and operating costs.

4. High Integration and Operational Flexibility

Equipped with an intelligent control system and touchscreen interface, the unit allows for independent control. Maintenance can be performed without shutting down the entire system, ensuring continuous absorption and treatment.

5. Long Service Life

Corrosion-resistant and durable; the main equipment has a service life of over eight years.

Why Choose Us?

1. 30 years of dedicated focus on the niche hydrometallurgical industry

A national-level specialized and innovative enterprise.
A leading domestic manufacturer of new vinyl ester resin electrolyzers, boasting the largest production scale and user base.
A comprehensive service provider of innovative technologies and overall electrolysis system solutions within the industry.
Possesses extensive experience in providing comprehensive electrolysis system services both domestically and internationally.

2. Independent R&D and innovative technologies drive industry development

A technology pioneer in the field of new electrolytic cells, achieving domestic substitution.
The first in the industry to launch an integrated solution encompassing pipes, cells, and platforms.
Innovative R&D of nitrogen oxide absorption devices achieves zero emissions, zero pollution, and high absorption efficiency.
Innovative R&D of electrolysis processes and green intelligent electrolysis technology equipment.

3. Full-cycle after-sales service

Provides closed-loop circulation process for electrolytic cell body and complete system support.
380A/m2 current density electrolytic copper application technology and equipment
“Anode bagging method three-nickel electrowinning process” has been awarded “international leading level” by the China Nonferrous Metals Industry Association, fully meeting environmental compliance and emission reduction policy requirements.

4. Comprehensive, full lifecycle services, upgrading to a system solution partner

Transforming from a single equipment manufacturer to a provider of complete electrolysis system solutions.
Covering the entire chain from process design, installation and commissioning to operation and maintenance training, tailored to the characteristics of the non-ferrous metals industry, helping customers lower barriers to entry, shorten lead times, improve stability, and build high customer loyalty.

Service Guarantee

1. Full-Process Technology Empowerment

We provide full lifecycle technical support, from project feasibility analysis and process design to production optimization, to ensure that process parameters meet customer needs.

2. Independent Core Equipment Manufacturing

Independently researches and manufactures electrolysis units, diaphragm systems, high-precision conductive systems, and intelligent solution circulation systems. Utilizing high-strength, corrosion-resistant materials and modular design, it ensures efficient and stable equipment operation, with energy consumption indicators 10%-15% better than industry standards.

3. Full-Cycle After-Sales Service

24-hour response mechanism, remote intelligent operation and maintenance, global spare parts warehousing and distribution network, and technical iteration support.
